1 Phase On-line UPS, Rack / Tower Convertible - 6KVA~20KVA

Model：SUI-1106RT to 20RT

Type:
Rack / Tower Convertible

Capacity:
Single Phase 6~20KVA

Made in
Taiwan, ROC

Add in inquiry Download

• ATM / ADM

• Computers

• Computer Center

• Emergency Lightning

• Hospitals / Medical Instrument

• Lan File Server

• Network & Data Center

• OA Facilities

• Security Monitoring PC or Server

• Telecommunication Equipments

• Any Equipments which required

• High Stability Power Protection

Rack / Tower Convertible!

• High Performance True Double Conversion On-Line UPS

• Rack / Tower Convertible Cabinet - 12U for 6/10KVA, 19U for 20KVA

• External Battery Bank (Option) to Extended Back-up Time

• N+X Parallel Redundancy and Capacity Expansion (Option)

• Individual Power Distribution Unit c/w Maintenance Bypass Switch

(Optional for Input / Output: 220V / 230V / 240V)

• Microprocessor Control Guarantees High Reliability

• Low Heat Dissipation in Long Time Operation

• Input THDi < 5%; Output THD < 2%

• Emergency Power Off Function (EPO)

• High Efficiency Mode (ECO Mode)

• Fan Speed Control & DC Start

• Output Voltage Regulation <1%

• Isolation Transformer (Option)

• Automatic Self-testing Function

• Power Management Software

• Output Power Factor 0.9

Model SUI-1106RT-12U SUI-1110RT-12U SUI-1120RT-19U
Capacity 6KVA / 5.4KW 10KVA / 9.0KW  20KVA / 18KW
   INPUT
Phase 1Phase 2Wire+G
Voltage 208 / 220 / 230 / 240Vac
Frequency (Bat Mode) 50Hz or 60Hz (Auto Sensing)
THDi < 5% with Resistor Full Load
   OUTPUT
Phase 1 Phase 2 Wire+G or 1 Phase 3 Wires+G (With Isolation Transformer)
Voltage 1 Phase 2 Wire+G: 208 / 220 / 230 / 240Vac;
1 Phase 3 Wires+G: 110 / 220 or 115 / 230 or 120 / 240Vac
Voltage Regulation +/-1% (+/-2% with Isolation Transformer)
Waveform Pure Sinewave
THD <2% (Linear Load) or <5% (Non-linear Load)
Crest Factor 3 : 1
Maintenance Bypass Standard Feature
    EFFICIENCY
AC Mode >92% at Full Load and Battery Full Charged
Battery Mode >92% at Full Load and 12Vdc / Battery
ECO Mode >96% at Full Load and Battery Full Charged
    BATTERY
Voltage 240Vdc
Type  12V/7AH*20 Expandable 12V/9AH*20 Expandable (12V/9AH*20)*2 Expandable
Recharge Time  7Hrs to 90% Depending on the Capacity of External Battery 8Hrs to 90% Depending on the Capacity of the External Battery 8Hrs to 90% Depending on the Capacity of the External Battery
   TRANSFER TIME
Line to Battery 0ms
Inverter to Bypass 0ms
ECO Mode to Inverter < 10ms
   DISPLAY
LED Normal (Green), Bypass (Yellow), Fault (Red), Battery (Yellow)
LCD Load Level / Battery Voltage / Battery Mode / AC Mode / Bypass Mode Information
   AUDIBLE ALARM
Battery Mode Sounding every 4 seconds
Low Battery Sounding every second
Overload Sounding twice every second
UPS Fault Continuously sounding
   COMMUNICATIONS
Interface (Port) Dry Contact (Option), USB
Intelligent Slot Slot for SNMP or AS-400 (Option)
EPO Emergency Power Off
   ENVIRONMENT
Temperature 0~40°C (32°F~104°F)
Humidity 0~95% (Non-condensing)
Acoustic Noise <50dB at 1Meter distance
   PHYSICAL
Capacity 6KVA 10KVA 20KVA
Dimension W*H*D/mm 440*528*630 (12U) 440*528*630 (12U) 440*528*836 (19U)

* The specifications are subject to change without prior notice.

• External Battery Bank

To Extend Back-up Time

• Built-in Isolation Transformer

With built-in Isolation Transformer, the UPS will offer full isolation and complete common mode noise rejection (N-G = 0) for connected precious equipment.
It becomes an ideal power source with 100% protection against unexpected AC Power problems.

• Interface (Port)

Dry Contact

• Intelligent Slot

Slot for SNMP or AS-400 (Option)

• N+X Parallel Redundancy and Capacity Expansion

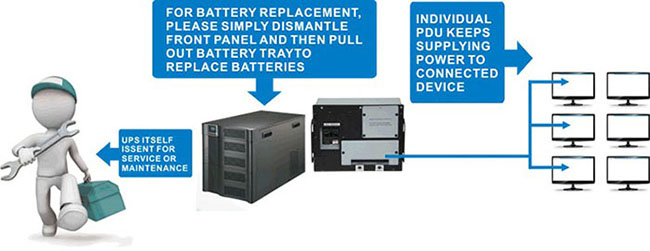

Power Distribution Unit for SUI-1106 / 1110 Tower Type On-line UPS


A "Power Distribution Unit (PDU) is a device fitted with multiple outputs designed to distribute electric power, especially to racks of computers and networking equipment
located within a data center.
SUI series 1KVA to 20KVA True Double Conversion On Line UPS is made with individual "Power Distribution Unit (PDU)".

With PDU, UPS provides continuous power to connected equipment during maintenance via a simple rotary switch.

With PDU, users or engineers do not need to unplug all connected devices anymore when UPS is going with regular maintenance. When UPS comes back from regular
maintenance, engineers can simply assemble PDU with UPS and do not need to make wire connection to utility power again. It efficiently saves cost and labor hours
on UPS maintenance.

With PDU, On Line UPS system becomes HOT SWAPPABLE.

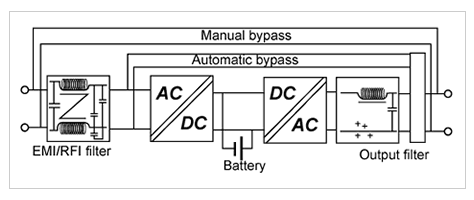

Block Diagram :
