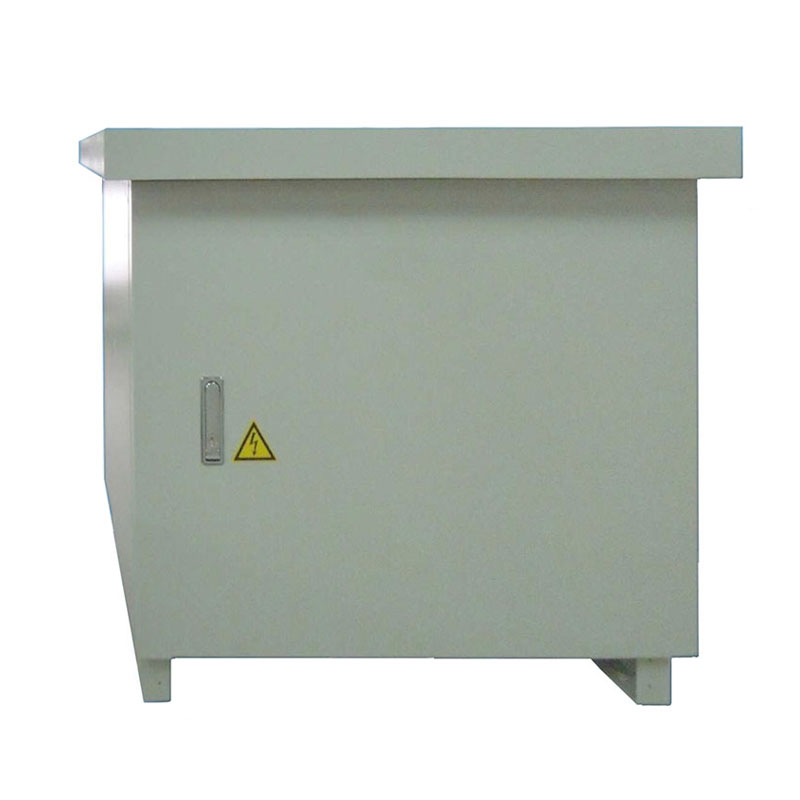

INDUSTRIAL Grade OUTDOOR AVR, Servo Motor Type
Model：SPS-O series
Add in inquiryType:
Servo Motor Type
Capacity:
10~400KVA
Made in
Taiwan
Add in inquiryType:
Servo Motor Type
Capacity:
10~400KVA
Made in
Taiwan
• Base Stations
• Bridge
• Communication Systems
• Golf Course Lighting Systems
• Infrastructure Telecom Companies
• Lighting Systems
• Mobile Phone Operators
• Outdoor Electric Equipment
• Park Electric Equipment
• Perimeter Lighting
• Playground Resort
• Satellite Operators
• Security Systems
• Various United Nations Divisions
• TV & Radio Broadcasting Stations
• including WHO, UNICEF and WFP
Simple & Reliable AVR You can Trust!

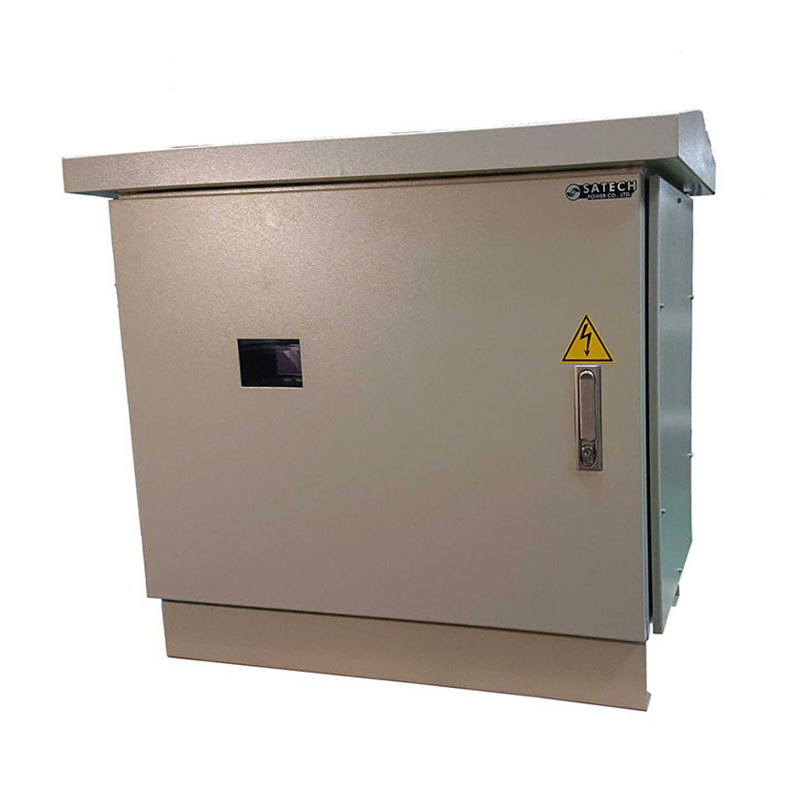

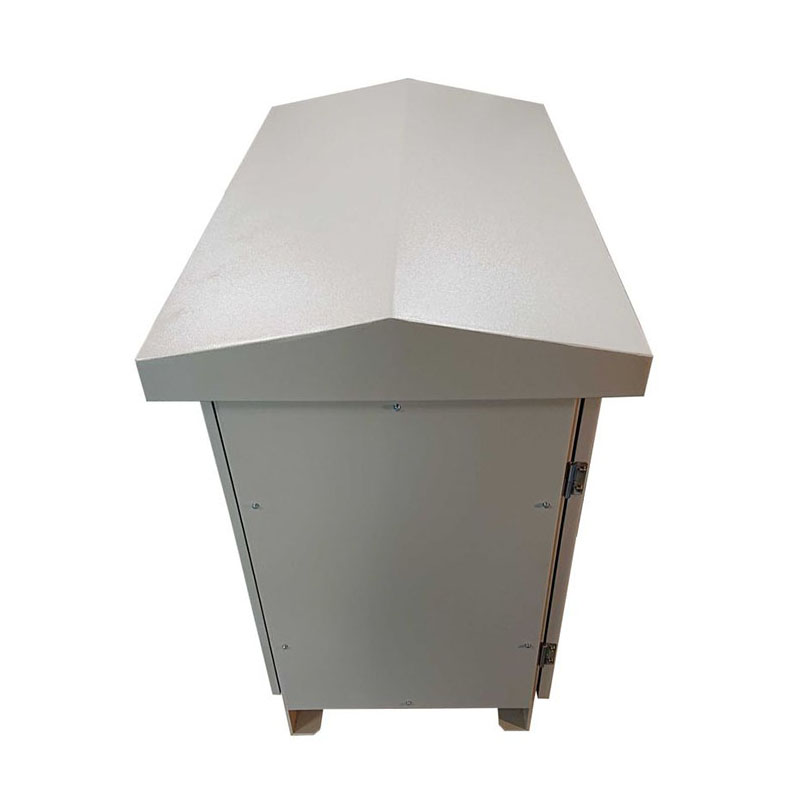

► IP-54 WEATHER-PROOF ENCLOSURE
Designed and manufactured to withstand extremes of high humidity, dry weather and dust.
► H-GRADE ISOLATION TRANSFORMER (DELTA/WYE) (OPTION)
Galvanic isolated is used to protect against electric shock, to suppress electrical noise in sensitive devices.
► HIGHER LEVEL OF SURGE AND LIGHTNING PROTECTION
Special design to deal with high level protection for Telecommunication applications and for equipment that require a higher level of Surge, Spike & Noise Protection.
► BETTER THAN 98 % VA EFFICIENCY, FROM 0 TO 100 % LOAD
Very low losses and minimal heat dissipation.
► SOFT START LOAD PROTECTION
Ensure that the output voltage is at its minimum upon Switch-On before it commences full stabilization.
► INDEPENDENT PHASE CONTROL
When AC power encounters phase unbalanced, non-linear power or heavy load, each phase keeps maintain its accurate Output voltage.
► STRONG OVERLOAD CAPABILITY
Sustained 200 % of its rated loading capacity, no voltage goes down extremely.
► -30 % / +25 % WIDE INPUT VOLTAGE RANGE
More Wider Input Voltage Range is available on request.
► ±1% ~ ±2% PRECISE & LINEAR VOLTAGE REGULATION RATE
Output Voltage Accuracy can be stabilized within a safety working range, even in high voltage fluctuation areas.
► FRONT ACCESS CABINET WITH LOCKABLE DOORS
Easy installation and maintenance.
► FULL PROTECTION
• Over Voltage Protection:
If Input voltage exceeds voltage regulation range, the AVR will cut off output voltage automatically and shield abnormal voltage enters into the AVR directly or burn circuit boards.
• Under Voltage Protection:
When Input voltage is too low, it will cause malfunctions of machinery automation; Product failure rate will increase as well.
• Phase Failure Protection:
Should one of the electric wires is disconnected abruptly while AVR is working, the AVR will cut off at once and Red light indicator is flashing. Verify if the connected equipment remains in Safety Electrical mode and prevent the load from serious damage.
• Time Delay-off & Soft Start Protection:
Instantaneous power blackouts and recovery will damage electrical loads.
While AC power recovery, the AVR starts automatically from low voltage output, to ensure the security of load.
► BYPASS CONTROL SWITCH
► VOLTMETER / SELECTOR SWITCH
► MANUAL MAINTENANCE BYPASS SWITCH
The switch is for periodically maintenance and service. Not affect machinery running in any ways.
► ABNORMAL LED INDICATORS
LED displays provide immediate, exact fault states for easier and efficient maintenance.
► CONCEALED NON-FUSE CIRCUIT BREAKER
Prevent man-made damage or careless machine shutdown. Fitted with Overload protection.
► SAFETY HIDING-STYLE SWITCH SHIELD
Prevent damage or man-made wrong action during transportation which would cause no voltage output.
► COMPLIANCE WITH INTERNATIONAL STANDARDS
Electro-Magnetic Compatibility (EMC) Directive: IEC61000-4-2 / 3 / 4 / 5 / 6 / 8 / 11,
Low Voltage Directive (Safety): EN61000-6-2 / 4
► CE CONFORMITY
European Union Directives 2004/108/EC (The EMC Directive) and 2006/95/EC (The Low Voltage Directive)
► CUSTOMIZATION WELCOME
Please contact us, we will welcome the opportunity to review your problems and provide you with necessary solutions.
TECHNICAL SPECIFICATION (SINGLE PHASE) :
| Model No | SPS-O-1105 | SPS-O-1107 | SPS-O-1110 | SPS-O-1115 | SPS-O-1120 | SPS-O-1130 | SPS-O-1135 | SPS-O-1140 | |
| Capacity (KVA) | 5 | 7.5 | 10 | 15 | 20 | 30 | 35 | 40 | |
| Input Voltage | 230V (Other Voltage on request) | ||||||||
| Input Voltage Range | -30% / +25% (Other Voltage Range on request) | ||||||||
| Output Voltage | 230V (Other voltage on request) | ||||||||
| Output Voltage Accuracy | ±1% ~ ±5% adjustable (Preset at ±1.5%) | ||||||||
| Frequency | 47Hz ~63Hz | ||||||||
| Power Factor | Any lagging to 0.95 leading | ||||||||
| VA Efficiency | >/= 98% (AC to AC), from 0 to 100 % load | ||||||||
| Surge Ratings | 10X max current rating for 2 seconds 3X max current rating for 1 minutes 2X max current rating for 5 minutes |
||||||||
| Surge Suppression | Protect loads against high-energy spikes and transient voltage | ||||||||
| Surge Arrester | 40KA at 230V AC Class III (IEC 61643-1:1998-02, EN61643-11:2001) | ||||||||
| Distortion | T.H.D. (Total Harmonic Distortion) <1% adds | ||||||||
| Response Time | ＜0.1 Second | ||||||||
| Correction Time | 10 % supply variation will be corrected to within 2.5 % in 0.6 seconds | ||||||||
| Overload Capacity | 150 % for 10 seconds; 200 % for 2 seconds | ||||||||
| Standard Features | Input Circuit Breaker Output Magnetic Contactor Over / Under Voltage Protection Overload Protection, Short Circuit Protection Bypass Control Switch Voltmeter / Selector Switch |
||||||||
| Manual Bypas | The switch is for periodically maintenance and service. Not affect machinery running in any ways |
||||||||
| Soft Star | To ensure the security of load, the AVR always starts from low voltage before it commences full stabilization |
||||||||
| Construction | IP-44: Galvanized sheet, powder coating plus anticorrosive epoxy primer, BS EN5490 / IEC60529 (options: IP-43 / 54 / 66 / 67 / Stainless or others on request) | ||||||||
| Conformance | BS EN50081-1;2 / IEC 61000-4-3;4 | ||||||||
| CE Conformit | EN55022, EN50082-2, ENV50140-1 | ||||||||
| Optional Accessories | Ammeter/selector switch, Frequency meter | ||||||||
| Working Environment | 0°C ~ 45°C; 0% ~ 95% (non-condensing) | ||||||||
• The cubicle size varies with the input voltage range.
• Optional accessories added may affect dimension, subject to confirmation.
• We reserve the right to change specifications without prior notice.
TECHNICAL SPECIFICATION (THREE PHASE) :
| Model No. |
SPS-O 3310 |
SPS-O 3315 |
SPS-O 3320 |
SPS-O 3330 |
SPS-O 3345 |
SPS-O 3360 |
SPS-O 3375 |
SPS-O 33100 |
SPS-O 33120 |
SPS-O 33150 |
SPS-O 33200 |
SPS-O 33250 |
SPS-O 33300 |
||
| Capacity (KVA) | 10 | 15 | 20 | 30 | 45 | 60 | 75 | 100 | 120 | 150 | 200 | 250 | 300 | ||
| Input Voltage Range | 400/230V, -30% / +25% (Other voltages on request) | ||||||||||||||
| Output Voltage Accuracy |
400/230V, ±1% ~ ±5% adjustable (Preset at ±1.5%) (Other voltage on request) |
||||||||||||||
| Frequency | 47Hz ~ 63Hz | ||||||||||||||
| Power Factor | 0.95 ~ 1 | ||||||||||||||
| VA Efficiency | >/= 98 % (AC to AC), from 0 to 100% load | ||||||||||||||
| Surge Ratings |
10X max current rating for 2 seconds 3X max current rating for 1 minutes 2X max current rating for 5 minutes |
||||||||||||||
| Surge Suppression | Protect loads against high-energy spikes and transient voltage | ||||||||||||||
| Surge Arrester | 40KA at 415V AC Class III (IEC 61643-1:1998-02, EN61643-11:2001) | ||||||||||||||
| Distortion | T.H.D. (Total Harmonic Distortion) <1% adds | ||||||||||||||
| Response Time | ＜0.1 Second | ||||||||||||||
| Correction Time | A 10% supply variation will be corrected to within 2.5% in 0.6 seconds | ||||||||||||||
| Overload Capacity | 150% for 10 seconds; 200% for 2 seconds | ||||||||||||||
| Phase Unbalance | Capable to correct balance within 2% under 30% phase unbalance state | ||||||||||||||
| Protection |
Input Circuit Breaker, Output Magnetic Contactor, Over/Under Voltage Protection Overload Protection, Short Circuit Protection, Phase Failure Protection Bypass Control Switch Voltmeter / Phase Selector Switch |
||||||||||||||
| Manual Bypass |
The switch is for periodically maintenance and service. Not affect machinery running in any ways |
||||||||||||||
| Soft Start |
Ensure that the output voltage is at its minimum upon Switch-On before it commence full stabilization |
||||||||||||||
| Construction |
IP-44: Galvanized sheet, powder coating plus anticorrosive epoxy primer, BS EN5490 / IEC 60529 |
||||||||||||||
| EMC Conformance | BS EN50081-1;2 / IEC 61000-4-3;4 | ||||||||||||||
| CE Conformity | EN55022, EN50082-2, ENV50140-1 | ||||||||||||||
| Optional Accessories | Ammeter / selector switch, Frequency meter | ||||||||||||||
| Working Environment | 0°C ~ 45°C; 0% ~ 95% (non-condensing) | ||||||||||||||
• The cubicle size varies with the input voltage range.
• Optional accessories added may affect dimension, subject to confirmation.
• We reserve the right to change specifications without prior notice.
• AUTO RESTORE WHILE AC RECOVERY
The system to be automatically switched into operation when power is restored (automatically) during a power failure.
• H-GRADE ISOLATION TRANSFORMER (DELTA/WYE)
Galvanic isolated is used to protect against electric shock, to suppress electrical noise in sensitive devices.
• SPD (Surge Protective Device) or
TVSS (Transient Voltage Suppressors) Protection
• Lightning Protector
• Outdoor Enclosure
• Optional Accessories:
⇒ Output Circuit Breaker
⇒ Ammeter / Selector Switch
⇒ Frequency Meter
IP DEGREES IN ACCORDANCE WITH IEC 529 :

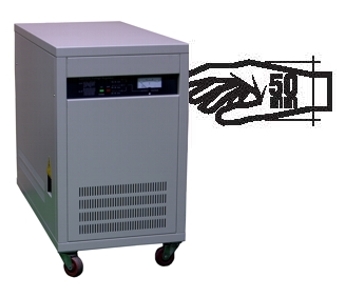

| The Degree of Protection against The Ingress of Solid Foreign Objects |
The Degree of Protection against The Ingress of Water with Harmful Effects |
||||
|
1st Digit |
Object Size Protected Against |
Effective Against |
2nd Digit |
Protected Against |
Testing for |
| 0 | Non-protected | No special Protection | 0 | Non-protected | No Protection |
| 1 |
>/= 50 mm
|
Any large surface of the body, such as the back of a hand, but no protection against deliberate contact with a body part |
1 |

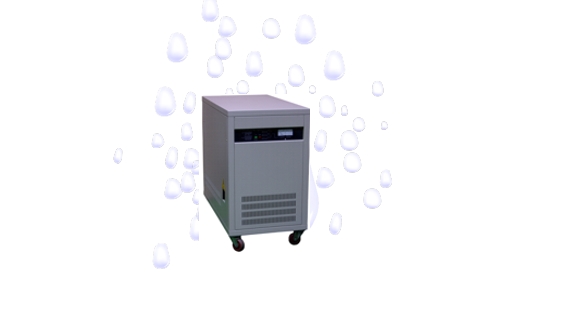

Dripping Water
|
Dripping water (vertically falling drops) shall have no harmful effect |
| 2 |

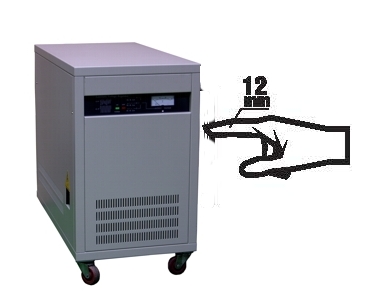

>/= 12.5 mm
|
Fingers or similar objects | 2 |
Dripping Water
|
Vertically dripping water shall have no harmful effect when the enclosure is tilted at an angle up to 15° from its normal position |
| 3 |

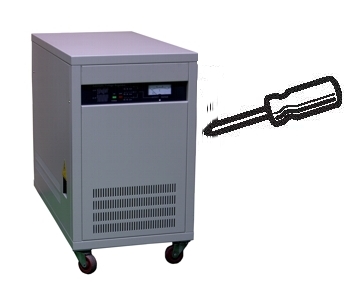

>/= 2.5 mm
|
Tools, thick wires, etc. | 3 |
Spraying Water
|
Water falling as a spray at any angle up to 60° from the vertical shall have no harmful effect |
| 4 |

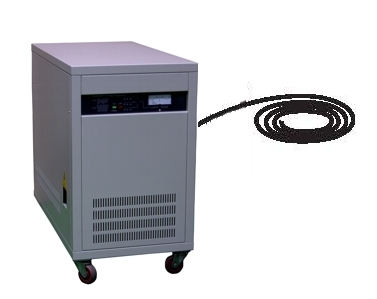

>/= 1mm
|
Most wires, screws, etc. | 4 |
Splashing Water
|
Water splashing against the enclosure from any direction shall have no harmful effect. |
| 5 |

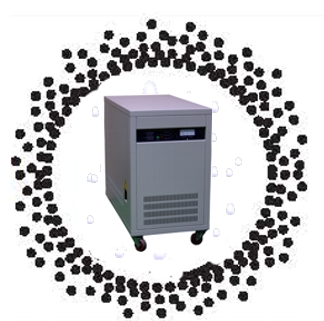

Dust protected
|
Ingress of dust is not entirely prevented, but it must not enter in sufficient quantity to interfere with the satisfactory operation of the equipment, complete protection against contact |
5 |
Water Jets
|
|
| 6 |

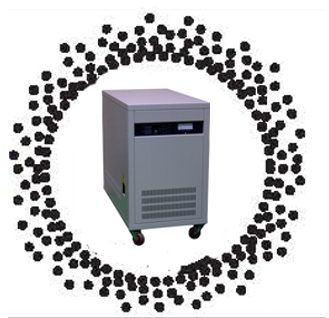

Dust-tight |
No ingress of dust, complete protection against contact |
6 |
Powerful Water Jets
|
Water projected in powerful jets (12.5mm nozzle) against the enclosure from any direction shall have no harmful effects |
|
For example, IP20 means: |
7 |
Temporary Immersion up to 1m |
Ingress of water in harmful quantity shall not be possible when the enclosure and time (up to 1m of submersion) |
||
| 8 |
Immersion Beyond 1m
|
The equipment is suitable for continuous immersion in water under conditions which shall be specified by maker |
|||
