Add in inquiry DownloadType:
IGBT / PWM Type
Capacity:
10~800KVA
Made in:
Taiwan, ROC
• Automation
• Big Power Station
• Civil and Military Aviation
• Civil and Military Nautical
• Emergency Lighting
• Large Scale Substation
• Petrochemical & Industrial Plants
• Railway Field
• Telecommunication
Clean,Highly Regulated Power Supply !
Full Digital and Intelligent Inverter / DC UPS

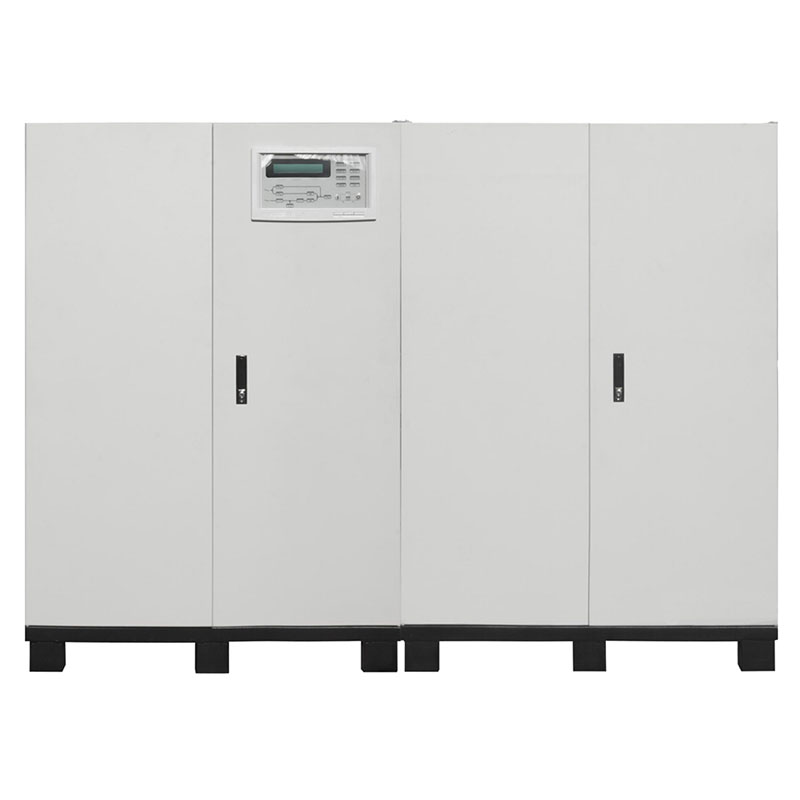

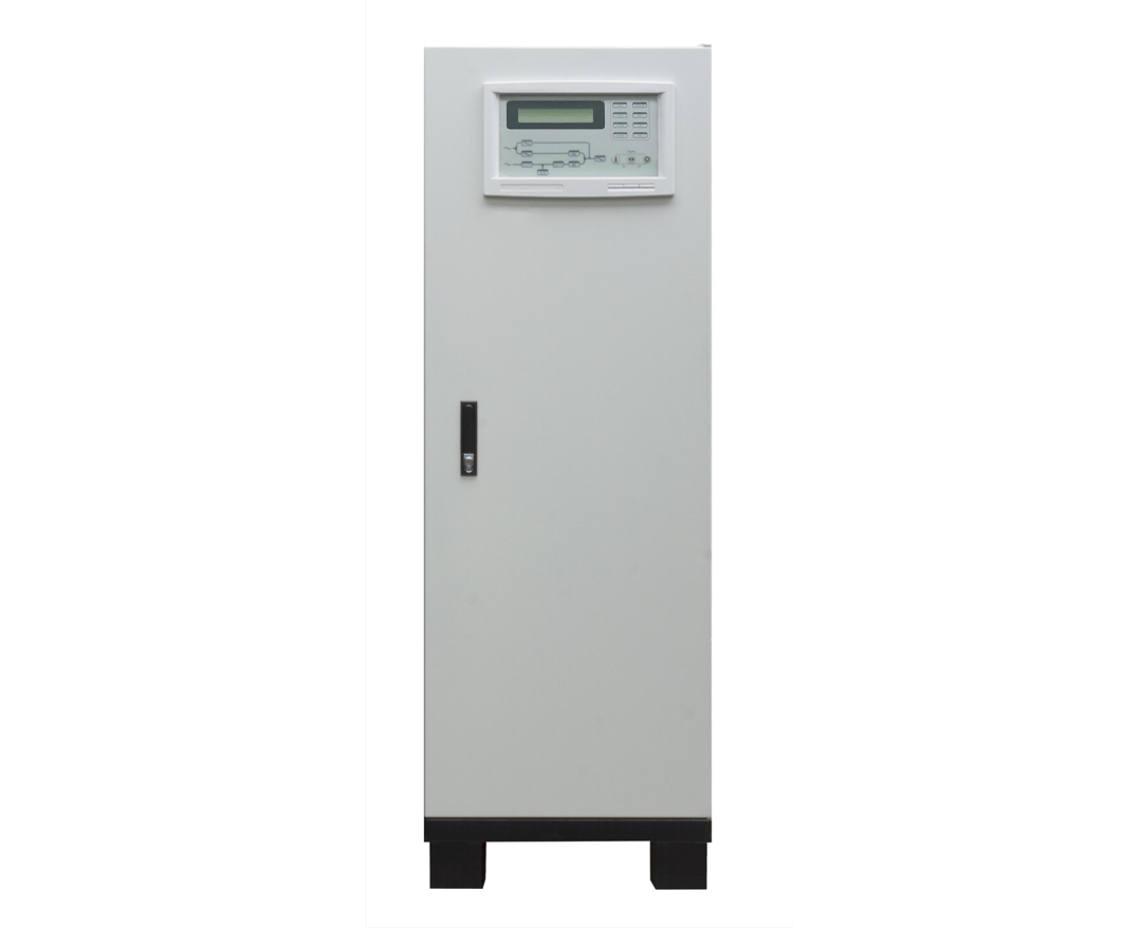

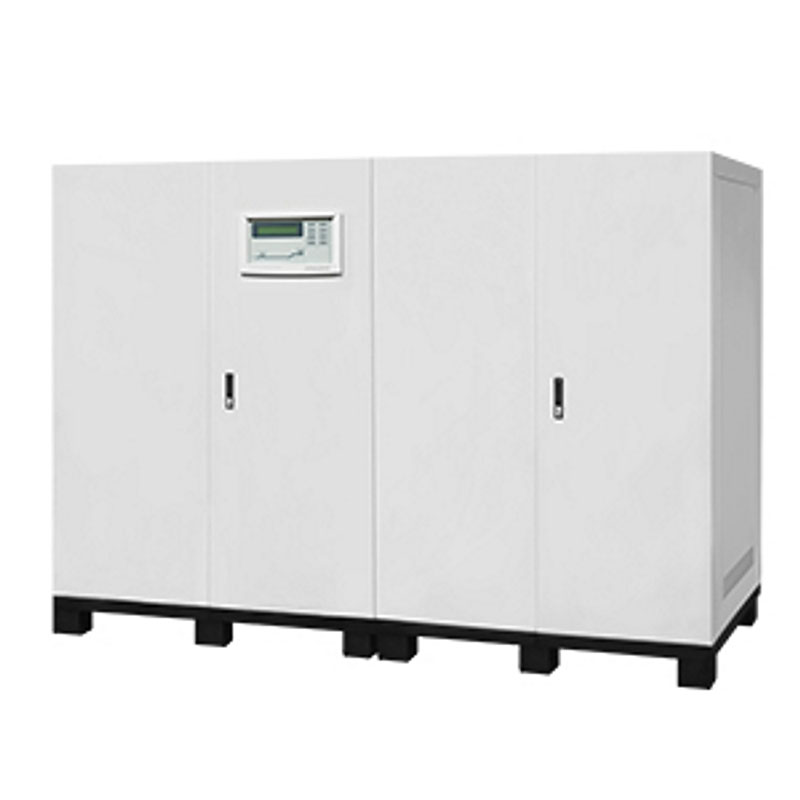

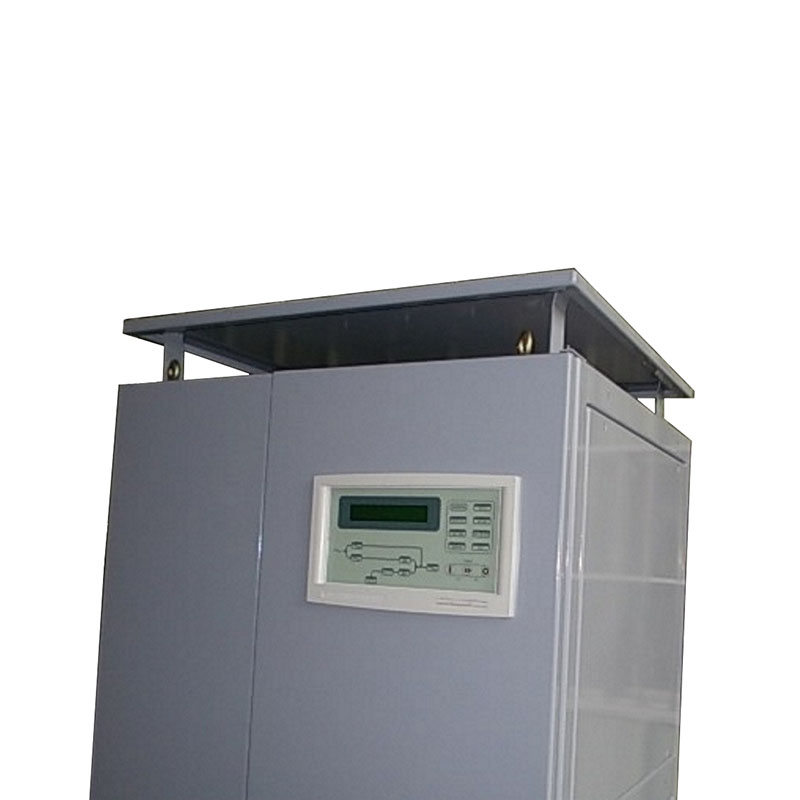

The SPI series Power Inverter / DC UPS for Electricity is available
from 10 to 400KVA 110Vdc / 220Vdc; 10 to 800KVA / 348Vdc as standard,
in Single or Three Phase Output configurations.
• Transformer base design with advanced IGBT to power conversion.
• Advanced technology of PWM, DSP and IGBT Switching components:
Improve the system stability and efficiency.
• Complete Input to Output ‘Galvanic’ Isolation:
Provides a completely isolated and re-reference output. This isolation protection provides a proven solution to problems created by induced voltages affecting the critical loads.
Since the output circuit to the load is completely isolated and no noise induced on the neutral can permeate to the loads, systems operate in a more reliable fashion.
• True galvanic isolation design to avoid ground current leakage.
• Multi-CPU Control and the Excellent Compatibility between Hardware and Software
• Reliable input surge protection and EMI suppression.
• Efficiency Optimization Function
• Soft start on inverter :
Cold start function (DC-start) functionality allows unit to operate with battery only.
• Automatic Self-testing Features:
The system incorporates an automatic testing feature performed monthly. An event log will record, and store, up to 77 of the most recent events allowing the user to observe the condition of the system. The front panel display provides user notification of
current system operation as well as provides the interface to view the event log and operating parameters.
• Internal Maintenance bypass switch:
An internal maintenance bypass switch is standard with all SPI series Power Inverter / DC UPS.
• Inherent protection against human operational error.
• High Output Power Quality and Overload Ability, Short in output will not cause the damage of Power Inverter / DC UPS.
• Plug & Play Module Design for Easier and Faster Maintenance & Service
• All electronics are built in modular front access and front removable sub-assemblies for easy service and maintenance.
• Double Built-in Static Switches Capable to Handle under Harsh Operating Environment.
• Protection against Detaching and Floating of the Neutral of Input Power Supply
• Robust design allows use in harsh conditions and 24/7 continuous application.
• Reasonable Heat Evacuation Passage Design
• Diagnostic panel with LCD and LED display
• Smart Thermo-controlled Fan Rotation to Increase the Fan Life Expectancy and Reduce Audible Noise
• Huge charging power :
The charging power is selectable (Lo/Me/Hi) according to Ah rating of the batteries, and can charge up battery banks providing more than 8Hrs back-up time without adding an extra charger.
• Smart Thermo-controlled Fan Rotation to Increase the Fan Life
• Redundant power supply
A supplemental power supply is added to provide redundancy for supplying power to the static switch, so that there will be AC output no matter what happens to the Power Inverter / DC UPS.
• Extremely flexible:
The SPI series Power Inverter / DC UPS offer tailor-made power protection to comply with your individual installation requirements. Options include utility bypass function, filter, 12-pulse rectifier, and distribution panels.
• Wide variety of communication interface:
. 8 terminals of dry contact
. 2 pairs of CNR16 terminals
. 4 ports of RS485
. 1 port of RS232
• Data Log Capability
• CUSTOMIZATIONS WELCOME
DC Input / 3-Phase AC Output (20KVA ~ 60KVA)
| Model | SPI-310-110 SPI-310-220 SPI-310-348 |
SPI-320-110 SPI-320-220 SPI-320-348 |
SPI-330-110 SPI-330-220 SPI-330-348 |
SPI-340-110 SPI-340-220 SPI-340-348 |
SPI-350-110 SPI-350-220 SPI-350-348 |
SPI-360-110 SPI-360-220 SPI-360-348 |
|
| Capacity | KVA | 10 | 20 | 30 | 40 | 50 | 60 |
| KW | 8 | 16 | 24 | 32 | 40 | 48 | |
| DC INPUT | |||||||
| Input Voltage | 110VDC, 220VDC, 348VDC | ||||||
| AC OUTPUT | |||||||
| Output Voltage | 3phase 3W+G (Δ) : 200V / 220V / 380V / 400V / 460V AC 3phase 3W+N+G (Y) : 208V / 380V / 400V / 415V / 460V AC |
||||||
| Voltage Regulation | ±1% | ||||||
| Wave Form | Sine Wave | ||||||
| Output Power Factor | 0.8 | ||||||
| Frequency Lock Range | 50 / 60Hz ±3Hz | ||||||
| Output Frequency | 50 / 60Hz ±0.1Hz (Free Running) | ||||||
| Phase Shift | < 0.5° (100% Unbalance Load) | ||||||
| Total Harmonic Distortion | < 2% (Linear Load) | ||||||
| Overload | <110% / Continuous 110 ~125% / 15 minutes 125 ~150% / 10 minutes > 150% / 1 minute |
||||||
| Efficiency (100% Load) | 93.0% | 93.0% | 93.0% | 93.5% | 93.5% | 94.0% | |
| STATIC SWITCH | |||||||
| Voltage Range | 173 ~ 277VAC (L-N) | ||||||
| Mains⇔Inverter | 0ms | ||||||
| OVERALL CHARACTERISTICS | |||||||
| Overall Efficiency | 91.0% | 91.0% | 91.0% | 91.5% | 92.0% | 92.0% | |
| Size (W*D*H) | 55*80*160cm | 110*80*160cm | 220*80*160cm | ||||
| Audible Noise | < 65dBA (at 1 Meter) | < 67dBA (at 1 Meter) | |||||
| Temperature | 0 ~ 40℃ ( 32 ~ 104℉ ) | ||||||
| Humidity | 0% ~ 90% (Non–Condensing) | ||||||
| Altitude | <1500 M Above Sea Level | ||||||
| Safety | EN50091-1,-2, CE, UL | ||||||
| Protection | Under / Over Voltage, Over Load, Short Circuit, Over Temperature | ||||||
| Lightning / EMC Filter | MOV / Input & Output (FCC CLASS A) | ||||||
| Galvanic Isolation | Input & Output true Galvanic isolation | ||||||
| LED, LCD, Buzzer | YES | ||||||
| Remote Contro/ Communication Interface |
Monitoring 1~99 UPS simultaneously / Dry contact, RS232, RS485 | ||||||
| Remarks: | 1. Different specifications required are available | ||||||
| 2. All specifications mentioned above are subject to change without prior notice. | |||||||
CUSTOMIZATIONS
► SINGLE AND THREE PHASE CONFIGURATIONS
► INPUT HARMONIC FILTER
Reduce T.H.D. (Total Harmonic Distortion) of input current.
► SERIAL & PARALLEL REDUNDANT
A supplemental power supply is added to provide redundancy for supplying power to the static switch, so that there will be AC output no matter what happens to the UPS.
► EMERGENCY STOP SWITCH (EPO)
In case of hazard, for example electric shock, fire or earthquake, the UPS can be shutdown (will have no AC at the output) either through a switch (can be added upon request) or through smoke detector signal (can be added upon request) to prevent further injuries or destruction.
► CASTERS & LEVELERS
For portability, the cabinets may be optionally equipped with the base-mounted casters / leveler set as shown.
► CABLE ENTRANCE DIRECTION
Cable entry can be from Front, Side, Rear or Top side.
COMMUNICATIONS OPTIONS
► UPSCANTM - Remote Control Panel
A hand held remote display and control module with LCD and LED display that can monitor up to 99 Frequency Converters via RS-485 at a remote distance up to <1,000M (up to 3,000feet)
► GPRS MODEM - Auto-dialing Module
In case of abnormal situation, it will automatically dial to specified service center for help. Multiple phone numbers can be set and no dedicated line is required.
► UPSCOMTM - 3 Phase PC Monitoring Software
Can provide real-time three phases information of Frequency Converter connected on the line and monitor 31 Frequency Converters max. with one PC.
►3 Phase SNMP Card
Can monitor and manage the Frequency Converters through Web browser and Java applet, providing simultaneously three phases data acquisition.
►DCMANTM - Battery Monitoring Module
An intelligent module to keep watching each battery in a battery bank connected in series and can distinguish and repair the aged battery before it is seriously worn out.
Introduction
SPI series Power Inverters / DC UPSs are designed for long “MTBF” and continue to provide manageable and dependable AC power for network demands. Featuring an integrated utility bypass function, pure sine wave output and low EMI / RFI emissions, SPI series Power Inverters / DC UPSs are well equipped for electricity and other demanding critical applications.
An intelligent microprocessor-based control and smart software for power management include alerts on the LCD / LED display interface that ensure safety and reliability.
A SNMP option is available; and would allow the user remote communication access to the inverter. SPI Series Power Inverters / DC UPSs are among the most reliable systems available for electricity and other demanding critical applications.
